Khanna Malleables
PIPE FITTINGS DIVISION
KM CAST IRON MALLEABLE BEADED ENDS
KM CAST IRON MALLEABLE BEADED ENDS
MALLEABLE PIPE FITTINGS BLACK & GALVANIZED - BEADED
- As per DIN 1950 / EN 10242
- Threads Conform to DIN 2999 / ISO 7/1
- Materials as per Din 1692
- Galvanized as per DIN 2950
- Black Fittings with Anti Rust Coating
- 100% pressure tested before leaving the factory
- Sizes from 1/8" through 4" diameters ( 6 mm TO 100 mm)
TUV CERTIFIED
ELBOWS 45°
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ELBOWS 90°
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
REDUCING ELBOW
| 3/8" X 1/4" | 1/2" X 1/4" | 1/2" X 3/8" | 3/4" X 3/8" | 3/4" X 1/2" | 1" X 1/2" X 3/4" | 1-1/4" X 3/4" X 1" | 1-1/2" X 1" X 1-1/4" | 2" X 1-1/4" X 1-1/2" | 2-1/2" | 3" | 4" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |

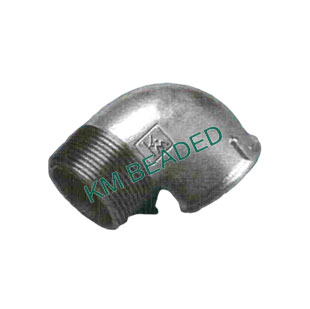

STREET ELBOWS 90°
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SIDE OUTLET ELBOW
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
BEADED PLUG
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
TEE
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" | 2-1/2" | 3" | 4" | 6" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | td> ✔✔ | ✔ | ✔ | ✔ |
CROSS
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
CROSSOVER
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
HEX BUSH
| 3/8" X 1/4" | 1/2" X 3/8" X 1/4" | 3/4" X 1/4" X 3/8" X 1/2" | 1" X 1/2" X 3/4" | 1.25 " X 1/2" X 3/4" X 1" | 1.5 " X 1.25" X 1" X 3/4" X 1/2" | 2 " X 1.5" X 1.25 X 1" X 3/4" X 1/2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
UNION
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
HEX NIPPLE
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" | 3" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
PIPE NIPPLE
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" | 3" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
LOCKNUTS
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
BENDS
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SOCKET
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
SIDE OUTLET ELBOW
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
ROUND FLANGE
| 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | 1 " | 1-1/4" | 1-1/2" | 2" |
| ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
